Advanced Encryption Standard (AES)
The Advanced Encryption Standard (AES) is a specification for the encryption of electronic data established by the U.S National Institute of Standards and Technology (NIST) in 2001. AES is widely used today as it is a much stronger than DES and triple DES despite being harder to implement.
Points to remember
- AES is a block ciper.
- The key size can be 128/192/256 bits.
- Encypts data in blocks of 128 bits each.
That means it takes 128 bits as input and outputs 128 bits of encrypted cipher text as output.AES relies on substitution-permutation network principle which means it is performed using a series of linked operations which involves replacing and shuffling of the input data.
Working of the cipher:
AES performs operations on bytes of data rather than in bits. Since the block size is 128 bits, the cipher processes 128 bits (or 16 bytes) of the input data at a time. The number of rounds depends on the key length as follows :
- 128 bit key 10 rounds
- 192 bit key 12 rounds
- 256 bit key 14 rounds

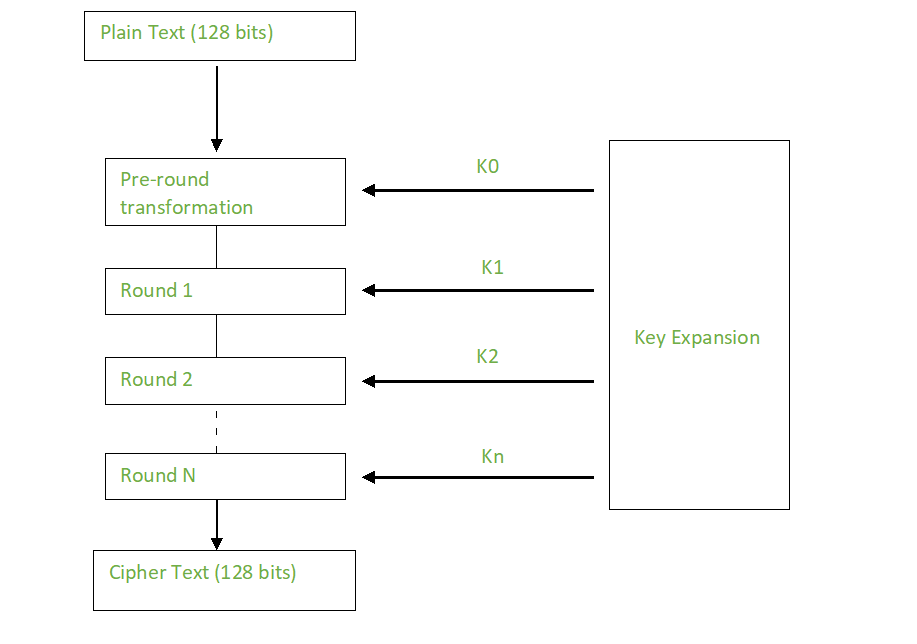

Creation of Round keys:
A Key Schedule algorithm is used to calculate all the round keys from the key. So the initial key is used to create many different round keys which will be used in the corresponding round of the encryption.
Encryption
AES considers each block as a 16 byte (4 byte x 4 byte = 128 bits) grid in a column major arrangement.
[ b0 | b4 | b8 | b12 ]
| b1 | b5 | b9 | b13 |
| b2 | b6 | b10 | b14 |
[ b3 | b7 | b11 | b15 ]
Before the encryption begins, the pre round transformation takes place, where a round key is XORed with the plaintext.This step is also done during decryption where the ciphertext is XORed with a round key.

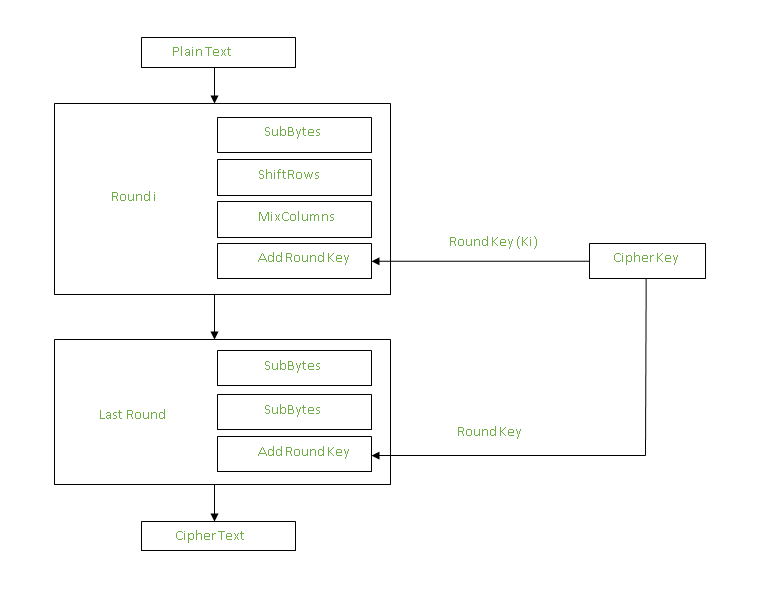

Each round comprises of 4 steps :
- SubBytes
- ShiftRows
- MixColumns
- Add Round Key
The last round doesn’t have the MixColumns step.
The SubBytes does the substitution and the ShiftRows and MixColumns performs the permutation in the algorithm.
SubBytes
This step implements the substitution.
In this step each byte is substituted by another byte(Its performed using a lookup table also called the S-box). This substitution is done in a way that a byte is never substituted by itself and also not substituted by another byte which is a compliment of the current byte.The result of this step is a 16 byte (4 x 4 ) matrix like before.
The next two steps implement the permutation.
ShiftRows :
This step is just as it sounds. Each row is shifted a particular number of times.
- The first row is not shifted
- The second row is shifted once to the left.
- The third row is shifted twice to the left.
- The fourth row is shifted twice to the left.
(A left circular shift is performed each time.)
[ b0 | b1 | b2 | b3 ] [ b0 | b1 | b2 | b3 ]
| b4 | b5 | b6 | b7 | -> | b5 | b6 | b7 | b4 |
| b8 | b9 | b10 | b11 | | b10 | b11 | b8 | b9 |
[ b12 | b13 | b14 | b15 ] [ b15 | b12 | b13 | b14 ]
MixColumns
This step is basically a matrix multiplication. Each column is multiplied with a specific matrix and thus the position of each byte in the column is changed as a result.
This step is skipped in the last round
[ c0 ] [ 2 3 1 1 ] [ b0 ]
| c1 | = | 1 2 3 1 | | b1 |
| c2 | | 1 1 2 3 | | b2 |
[ c3 ] [ 3 1 1 2 ] [ b3 ]
Add Round Keys:
Now the resultant output of the previous stage is XOR-ed with the corresponding round key. Here, the 16 bytes is not considered as a grid but just as 128 bits of data.
After all these rounds 128 bits of encrypted data is given back as output. This process is repeated until all the data to be encrypted undergoes this process.
Decryption
Each stage in the encryption process has a corresponding process which when performed reverts the changes made. Each 128 blocks goes through the 10,12 or 14 rounds depending on the key size. The stages of each round in decryption is as follows :
- Add round key
- Inverse MixColumns
- ShiftRows
- Inverse SubByte
The decryption process is the encryption process done in reverse so the steps with notable differences are explained here..
Inverse MixColumns
This step is similar to the MixColumns step in encryption, but differs in the matrix used to carry out the operation.
Inverse ShiftRows
This step is similar to the ShiftRows step, but here right circular shift is performed on each row.
Inverse SubBytes
This step is similar to the S-box step in encryption.Here, Inverse S-box is used during decryption.
Summary
AES instruction set is now integrated into the CPU (offers throughput of several GB/s)to improve the speed and security of applications that use AES for encryption and decryption.Even though its been 20 years since its introduction we have failed to break the AES algorithm as it is infeasible even with the current technology. Till date the only vulnerability remains in the implementation of the algorithm.
